Digital Roll To Sheet Laser Die Cutter with Max 27m/min Cutting Speed and Max 330mm Label Width

1set
MOQ
Negociável
preço
Digital Roll To Sheet Laser Die Cutter with Max 27m/min Cutting Speed and Max 330mm Label Width
Características Galeria Descrição de produto Peça umas citações
Características
Especificações
Diâmetro máximo do rolo: 450mm
Max Label Width: 330mm
Lâmina de corte: 4pcs máximo
Velocidade de corte: 27m/min máximo
Garantia: Um ano
Peso: 1400kgs
Largura máxima: 288 a 330mm
Aplicações: Cortando, estratificação, cortando, corte de folha
Destacar:

Max 27m/min Cutting Speed Laser Die Cutter

,

Max 330mm Label Width Digital Die Cutting Machine

,

Max 4pcs Cutting Blades Label Die Cutter
Informação básica
Lugar de origem: CHINA
Marca: ECOOGRAPHIX
Certificação: CE
Número do modelo: VD3350L
Documento: Digital Label Die Cutter VD...0 .pdf
Condições de Pagamento e Envio
Detalhes da embalagem: Embalagem de exportação padrão
Tempo de entrega: Cerca de 20 dias
Termos de pagamento: L/c, t/t
Habilidade da fonte: 300set
Descrição de produto
Digital Roll To Sheet Label Laser Die Cutter With Laminating
The laser die-cutting machine is a digital processing device integrating multiple advanced technologies, combining automatic label material conveyor, automatic web guide, laser flying cutting, and automatic waste removal into one system.
It is suitable for diverse processing solutions ranging from roll-to-roll to roll-to-sheet applications. The machine efficiently handles precision cutting requirements for non-metallic materials such as adhesive labels, PP synthetic paper, PVC film, cardboard, and offset paper, encompassing full-cut, half-cut, flying line, punching, and waste removal composite processes.
With its mold-free digital processing capability, the system directly drives the cutting process through electronic file data, significantly improving production efficiency for small-batch orders, effectively shortening product delivery cycles, and providing flexible and efficient smart manufacturing solutions for personalized customization needs.

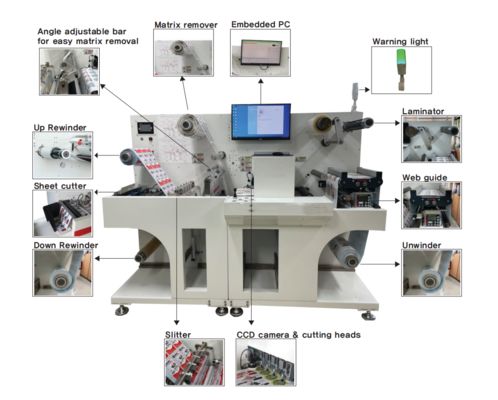

Product Features
  • High precision feeding system Utilizes ultrasonic web-guide system to ensure perfect material feeding.
  • Cold laminating Includes cold laminating function for bright, perfect labels. Back liner removal is optional.
  • Digital die-cutting system Features high precision screw transmission system with maximum speed of 9m per minute. Individual control for 4 heads with auto-adjust distance function.

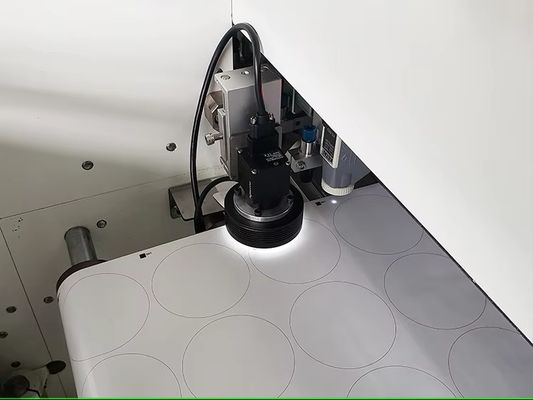

  • CCD identify system CCD camera position and identify system recognizes sequences for automatic file changing and next graphic cutting.
  • Waste removing system Dual mechanical force expansion control with multi-angle waste discharge frame ensures uniform waste removal and clean products.
  • Built-in sheet cutting system Optional built-in PC350 slitter for wired cutting and synchronous die-cutting/sheet cutting.
Digital Roll To Sheet Laser Die Cutter with Max 27m/min Cutting Speed and Max 330mm Label Width 0 Digital Roll To Sheet Laser Die Cutter with Max 27m/min Cutting Speed and Max 330mm Label Width 1 Digital Roll To Sheet Laser Die Cutter with Max 27m/min Cutting Speed and Max 330mm Label Width 2 Digital Roll To Sheet Laser Die Cutter with Max 27m/min Cutting Speed and Max 330mm Label Width 3 Digital Roll To Sheet Laser Die Cutter with Max 27m/min Cutting Speed and Max 330mm Label Width 4
